2k LB Cap. SB Small Gantry
Crane Model
Built to last, with our 10 year warranty. Yes, it CAN be rolled while loaded! Our 2PSB Small gantry crane.
2,000 lb. cap. SB Small Gantry Crane Model
Built to last, this is EC&MW’s most portable small gantry crane we have in production. We utilized a T Frame style concept for this aluminum gantry crane. Not to mention, this is our best priced gantry of all our models. This particular model is only available in a 2,000 lb capacity with a maximum height of 102” under the beam. The 102” height was originally designed for use in standard medical facility rooms with 9’ ceilings. With a 6” I Beam, the top of beam height is now 108” allowing for 1” deviation. The height hole spacing’s were purposely positioned to these spacing’s for a reason. It allowed the user, if needed, to offset one leg on a 5” curb or to offset it for a computer room floor. If you require a different capacity, other than 2000 lb, we can design and build you your own small gantry crane with capacities of as little as 250 pounds max.
This gantry model works great for maintenance of linear

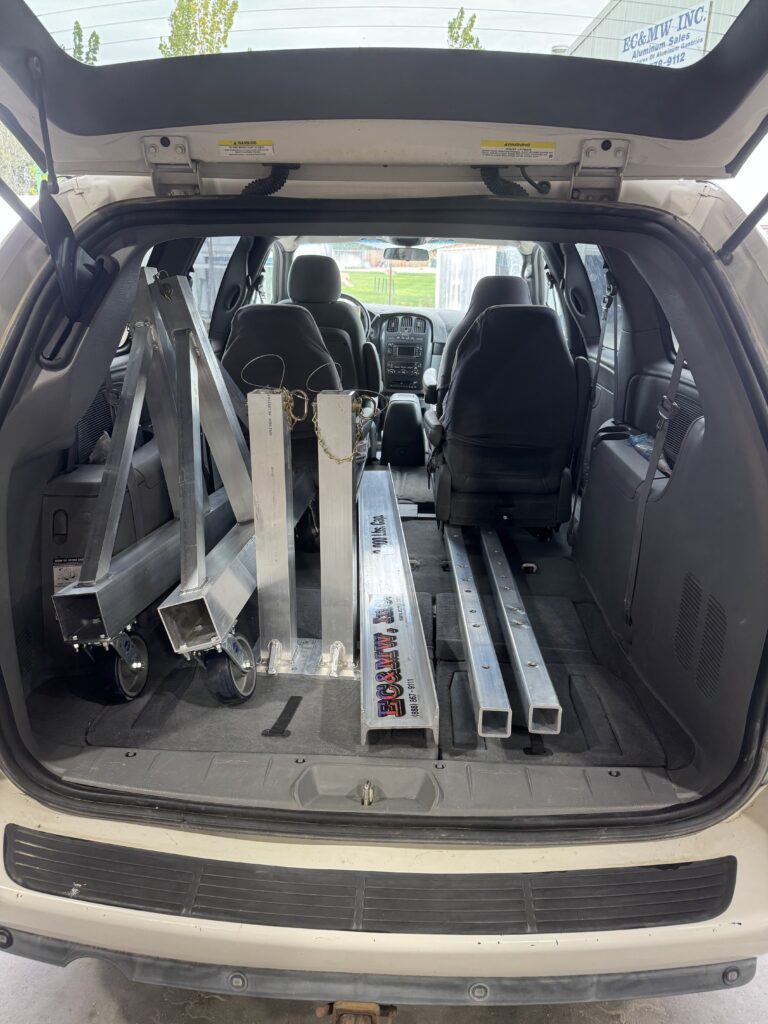

accelerators (Cancer Machines), medical beds, any small, tight area etc. This small, lightweight gantry easily fits in
service vehicles. The 6’ I beam model makes for a one person
assembly. Last of all, with is large 2,000 lb capacity, it can lift
almost anything a maintenance person would need to lift.
Uses: Maintenance,
Service technicians, Hospitals, Utility rooms, Construction with curbs. Any
small area where a gantry crane is needed.
Request a FREE Quote
While most aluminum gantries on the market only have 30″ of min to max height adjustment this little gantry has a whopping 36 3/8″. That’s a lot for its size. With 16 different height adjustments, the SB model makes this (we believe) the most versatile rolling small gantry crane on the market today. Add a 6″ I-beam and you can see that you can have OAH’s of just under 6′, 7′, 8′ and 9′ this should accommodate most any medical, utility or lab room etc. ceiling heights. Should you have to offset one leg on a curb? In the design we’ve made that possible by setting hole spacing’s at 4 7/8″ for a 5″ curb and 5 7/8″ for a 6″ curb. This does not take into consideration adjusting more than one hole at a time. By adjusting multiple holes, you can achieve 16 height offsets for a total of more than 40 combinations. Now the best part, the upright columns are reversible so there’s no way you can put it together wrong. Its truly a service person’s dream.
All of these models adjust from both the top and bottom of the vertical columns. All of our gantries have multiple height adjustments.
If this model is not large enough check out our larger T Fame Models or our A Frame Models!
Standard SB Small Gantry Crane Features 2k:
2,000 lb. cap.
Lightweight 6061 T6 series structural aluminum construction
Adjustable leg widths or fixed
4-position locking polyurethane casters at 90 degrees
Optional SB Small Gantry Crane Features:
Optional caster brakes
Optional casters styles (Steel wheels, V track, Etc.)
Optional custom size I-beam lengths
Optional custom heights upon request
Optional cart assembly available in all models
Optional swirled finish available in all models
Optional hoists, trolleys and custom slings
Shipping
- Overseas shipping is no trouble. We have shipping world wide for 20 years.
- Note: Shipping is F.O.B. from Elko, NV 89801

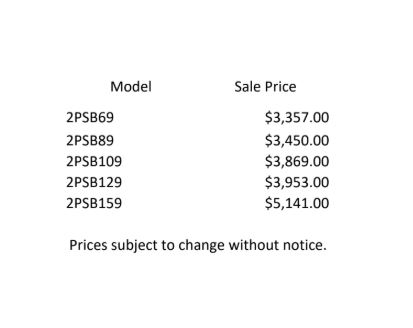

- For pricing please contact us by phone 775-778-9112 or fax 866-840-3839 or [email protected]
