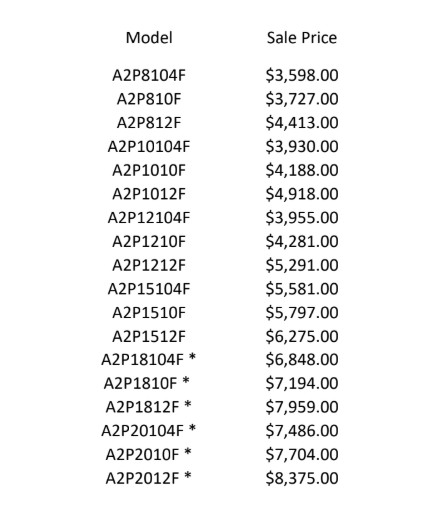

For pricing please contact us by phone 775-778-9112 or fax 866-840-3839 or [email protected]
A Frame Gantries
1k 2k 4k 6k & 8k
1k 2k 4k 6k & 8k A Frame Gantry
All of EC&MW’s fixed leg A-Frame Gantries are able to roll while loaded. We design, engineer and manufacture all of our products at our facility in Elko, NV. Our fixed A Frame gantry crane is built entirely from 6061 T6 Structural Aluminum, making them light weight and portable. With EC&MWs exclusive kick stand assembly (available for some models) the gantry can be easily assembled by minimum personnel.
Aluminum is a nonferrous material, meaning there is no iron in it. Therefore, it does not rust! If requested we can even provide stainless steel casters and hardware to further the corrosion resistance of your gantry crane.
Uses: Warehouses, Assembly plants, Sewer treatment facilities, Rigging companies. Anywhere you have a smooth surface for polyurethane casters.
Standard Portable Gantry Crane Features 1k, 2k, 4k, 6k, and 8k (3k Gantries available upon request.)
- 1,000, 2,000, 4,000, 6,000 and 8,000 lb. capacities
- From 8′ 8″ min on smaller models to 14′ Max heights under beam on 2 & 4,000 Lb models
- Structural 6061 T6 aluminum construction
- 5-7 position adjustable heights depending upon model
- 6″ Hole spacing standard. Custom hole spacings are available
- Fully adjustable leg widths by use of beam clamp attachments
- 4-position locking polyurethane casters at 90 degrees
Optional Portable Gantry Crane Features:
- Height adjustment winches (2) Not shown above
- Optional caster brakes
- Optional casters styles Steel, Stainless and V track, please inquire for more options
- Optional custom size I-beam lengths S shape beams standard wide flange breams are available
- Optional custom heights upon request
- Optional hoists, trolleys
- Optional cart assembly
Request a FREE Quote
Standards Models Chart
1,000 Lbs.
2,000 Lbs.
4,000 Lbs.
6,000 Lbs.
8,000 Lbs.
Fourteen foot HUB (Height Under Beam) models listed below.
Shipping
6,000 & 8,000 Lb. Capacity Aluminum Gantries
What is there to say! We came out with our aluminum 6,000 lb. capacity crane in 2000. Again, as far as we know, another first in the industry. Others then followed. In 2005 we upped to the next level with our 8,000 lb. capacity. Both models are constructed of the same 6061 T6 aluminum. Our 8,000 has reached the limits of some aluminum structures such as I-beam. We manufacture using the largest I-beam available to date, therefore limiting are overall span. These are for individuals or companies with larger lifting needs. Both 6,000 and 8,000 models come standard with 2 cable lifting winches (not shown) for height adjustment, also has fully adjustable legs widths as well as having four position locking polyurethane casters.
